What Actually Goes Where in Service Penetration Firestopping?

The products are not interchangeable, and picking the wrong one is not a cosmetic error. It is the difference between a compartment that holds for its rated period and one that fails early through the very opening meant to be sealed.

The confusion almost always comes from mixing up two entirely different jobs that happen at the same physical spot. Separate them and the whole subject falls into place.

The one idea that clears it up: two jobs, not one

A single cable passing through a rated floor can involve two completely separate fire-protection decisions.

Job 1 is protecting the barrier. A wall or floor is rated for a set period, say 120 minutes, to stop fire and smoke crossing from one compartment to the next. The moment you drill through it, you have made a hole, and the rating is void at that hole. Everything called firestopping or penetration sealing exists to do one thing: restore the rating at that breach.

Job 2 is protecting the service itself, or stopping the service from becoming a route for fire to travel. This has nothing to do with the barrier. It is about the cable or pipe as an object in its own right: whether its circuit keeps working in a fire, and how much fire it carries along its own length.

Fire-resistant cables and fire coatings for cables belong to Job 2. That single misclassification is what trips most people up, because they sit in the same product catalogues and get discussed in the same breath as sealants and collars, yet they answer a different question.

Hold this rule and you will rarely go wrong: anything that sits in the hole is firestopping, and anything that runs along the service is about circuit survival or flame spread.

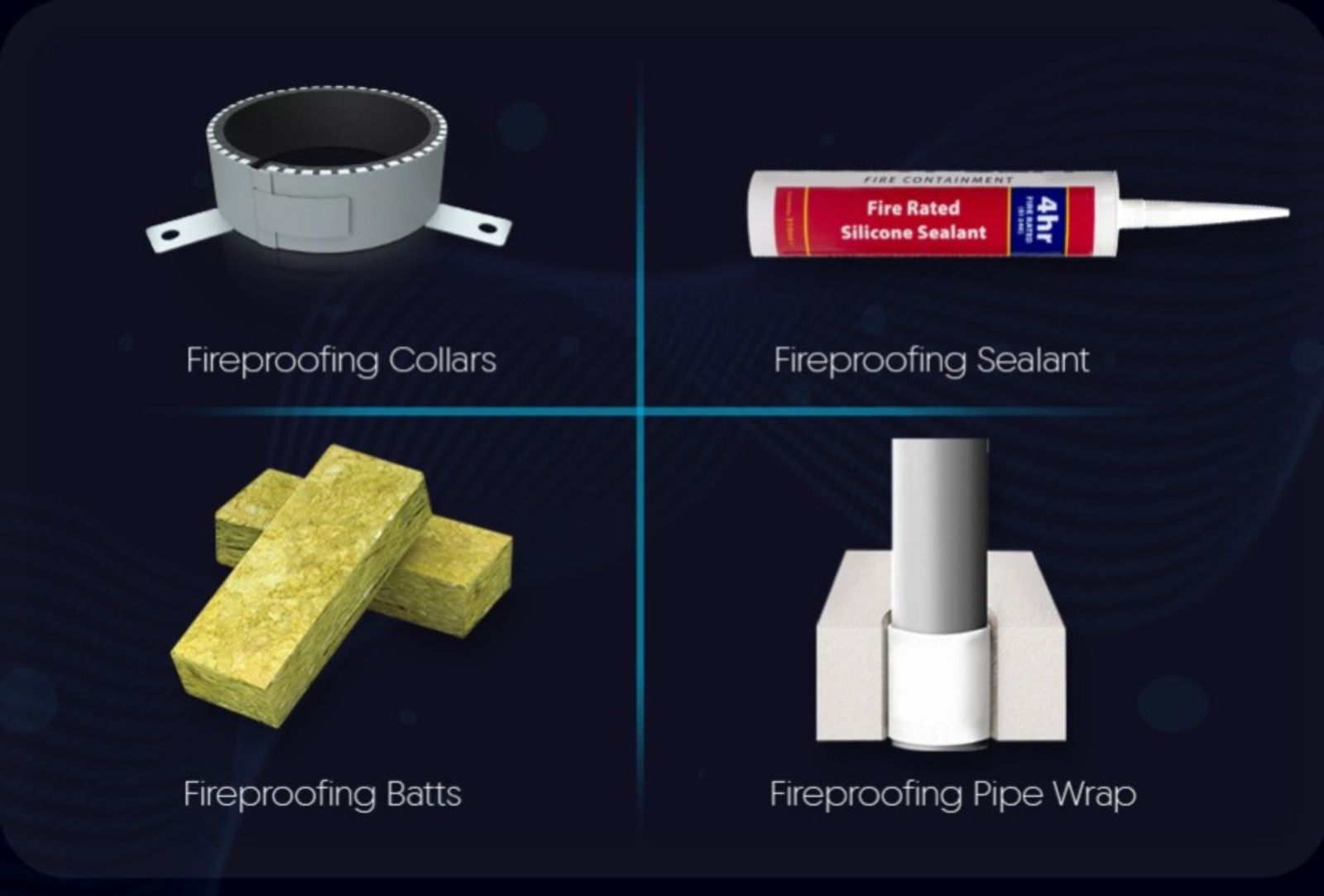

Job 1: sealing the breach

Within firestopping proper, the correct product is decided by one question. What does the penetrant do when it gets hot? Answer that and the product almost picks itself.

Metal pipes and conduits: sealant or fire mortar

A steel or copper pipe stays put in a fire. It does not burn and it does not collapse. It conducts heat, but as a physical object it holds its shape. So the only problem to solve is the annular gap between the pipe and the edge of the opening.

For small, clean gaps, a fire-rated sealant or mastic does the work. It stays flexible enough to absorb minor movement and seals integrity and, in many systems, insulation across the opening. For larger openings or where several services pass together, fire-rated mortar or a coated batt fills the void.

The catch with metal pipes is heat transfer, not collapse. A bare metal pipe can conduct enough heat to ignite material touching it on the cold side, which is why some tested systems call for local pipe insulation near the seal. The product choice is simple; the detail is in following the tested system, not improvising.

Plastic pipes: intumescent collars and wraps

A plastic pipe behaves in the exact opposite way, and this is the single most important contrast to understand. uPVC, PP, HDPE and similar plastics soften and burn away in a fire, leaving an open hole the full bore of the pipe. Sealing the annular gap around such a pipe is close to useless, because within minutes the pipe itself is gone and the hole is wide open.

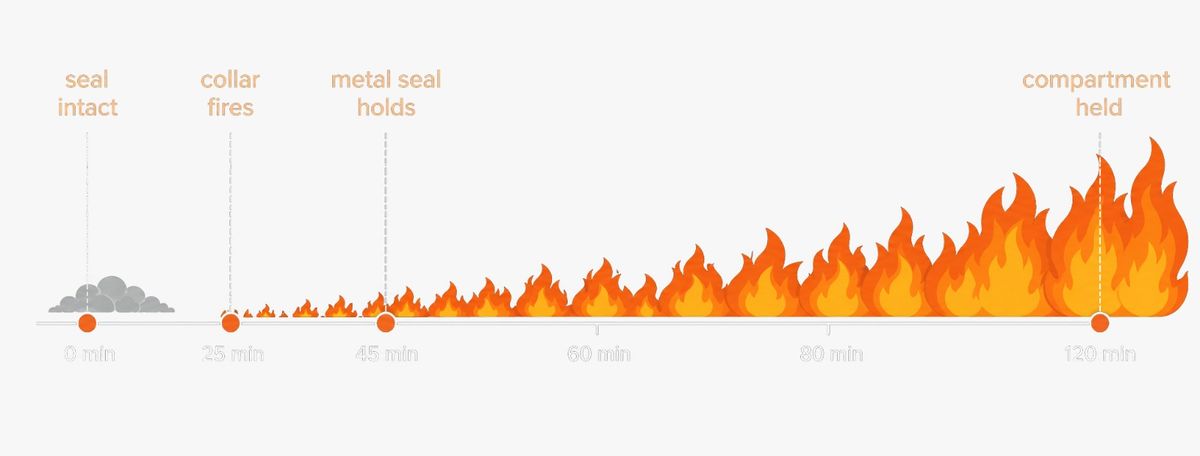

This is why plastic pipes get an intumescent collar or wrap rather than sealant. The collar carries an intumescent material that expands rapidly under heat, with enough force to crush the softening pipe closed before it disappears, sealing the opening from the inside. Collars are usually fitted on the surface of the wall or floor; wraps are set into the opening. The choice between them, and whether you need protection on one or both faces, depends on the tested configuration for that wall type and pipe size.

Get this pairing wrong in either direction and you have a defect: sealant around a plastic pipe leaves an open hole once the pipe melts, and a collar is redundant effort on a metal pipe that was never going to disappear.

Cables: mastic, coated batts and transit systems

Cables sit between the two. The conductors are usually metal and stay put, but the sheaths and insulation are combustible, the gaps around a bundle are irregular, and a dense bundle carries its own fire load straight through the opening.

Small cable penetrations, a few cables through a modest hole, are sealed with fire-rated mastic much like a metal pipe. Larger or mixed openings, cable trays and busbars through a big rectangular void, are closed with a coated mineral-wool batt: the batt fills the opening and an ablative or intumescent coating on its faces seals it and reacts under heat. Where the mix of services will change over the building's life, a modular transit system (the Roxtec type) uses rubber modules built up around each cable, letting you add or remove services later while keeping the seal certified.

For heavy cable bundles, an ablative coating applied at and immediately around the seal helps limit the fire load being carried through the opening. Note that this coating is part of the penetration seal here, working alongside the batt. That is different from coating a cable along its whole run, which is Job 2 and is covered further down.

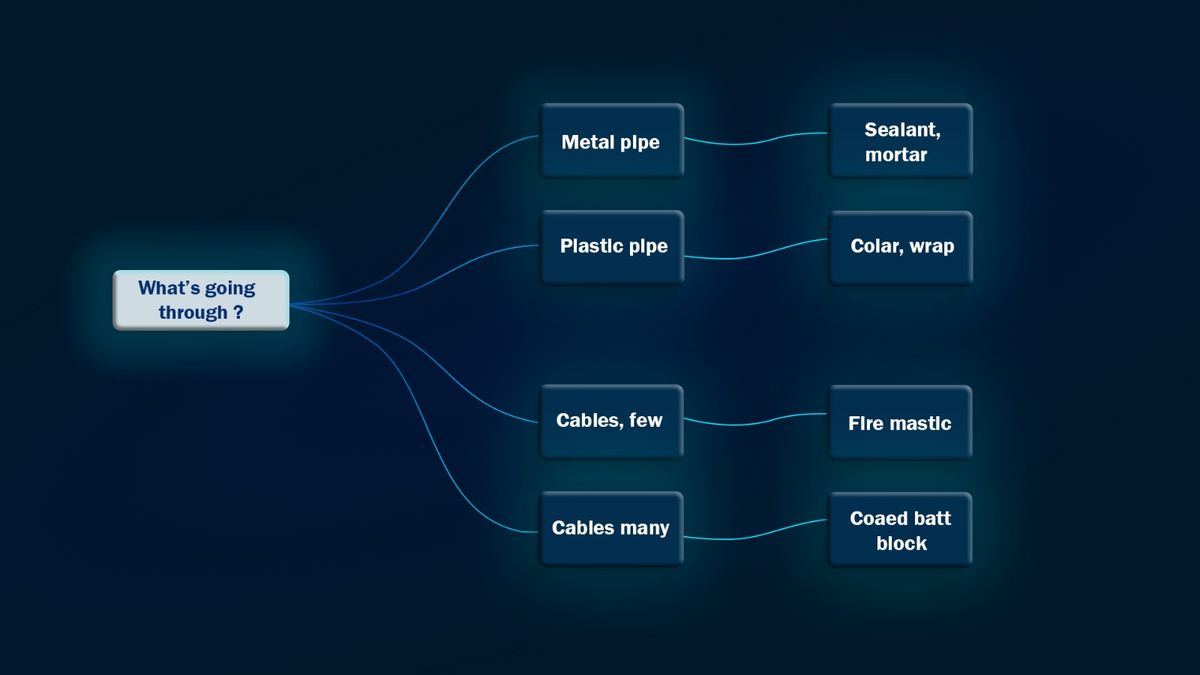

The decision, in one line each

  • Metal pipe or conduit: fire-rated sealant for small gaps, mortar or coated batt for larger openings. Watch heat transfer.
  • Plastic pipe: intumescent collar or wrap, sized and configured to the tested system. Never plain sealant alone.
  • Cables, small: fire-rated mastic.
  • Cables, large or mixed: coated mineral-wool batt, or a modular transit block where services will change.
  • Mixed services in one opening: a tested multi-service seal, usually batt-and-coat or a proprietary block, matched to the exact combination.

Clearing up the sleeve confusion

The word sleeve causes more arguments than any other term here, because it is used two ways.

Most of the time a sleeve is simply a tube, steel or plastic, cast into the slab or wall to form a clean, correctly sized opening for a pipe to pass through later. In that sense a sleeve is a former. It creates the hole. It is not a firestop. The firestop, whether a collar, a wrap, mortar or sealant, is installed in or around that sleeve afterwards.

Some manufacturers also sell a proprietary sleeve that has the intumescent element built into it, so the sleeve is the firestop. That is a specific tested product, not a general category. When someone hands you "a sleeve," the only question that matters is whether it carries a fire rating on its own or simply creates the opening. Assume the former until a test report tells you otherwise.

Job 2: protecting the service itself

Now the two products that keep getting pulled into firestopping conversations where they do not belong.

Fire-resistant (fire-survival) cable

A fire-resistant cable, mineral-insulated cable or a type such as FP200, is engineered to keep carrying current while a fire burns around it. Its reason for existing is circuit continuity: fire alarms, emergency lighting, smoke-extract fans, sprinkler and hydrant pumps all need to keep running while the building is on fire and everyone is getting out.

This is a property of the cable along its entire length, specified for life-safety circuits. It says nothing about the wall the cable passes through. A fire-survival cable still needs a proper penetration seal every time it crosses a compartment line. The cable keeps the circuit alive; the seal keeps the compartment intact. Two separate requirements.

Fire coating along cable runs

An ablative or intumescent coating applied along cable trays and runs, not at the penetration, does two things. It slows flame from spreading along the cable route, and it reduces the fire load a large cable run contributes to a space. This matters most in dense cable basements, risers and plant rooms where a burning cable run could carry fire across a building.

Again, this is a property of the run, not the barrier. It is easy to confuse with the coating on a firestop batt because the material can look similar, but the purpose and location are different: one protects the compartment at a single opening, the other protects the length of the cable route.

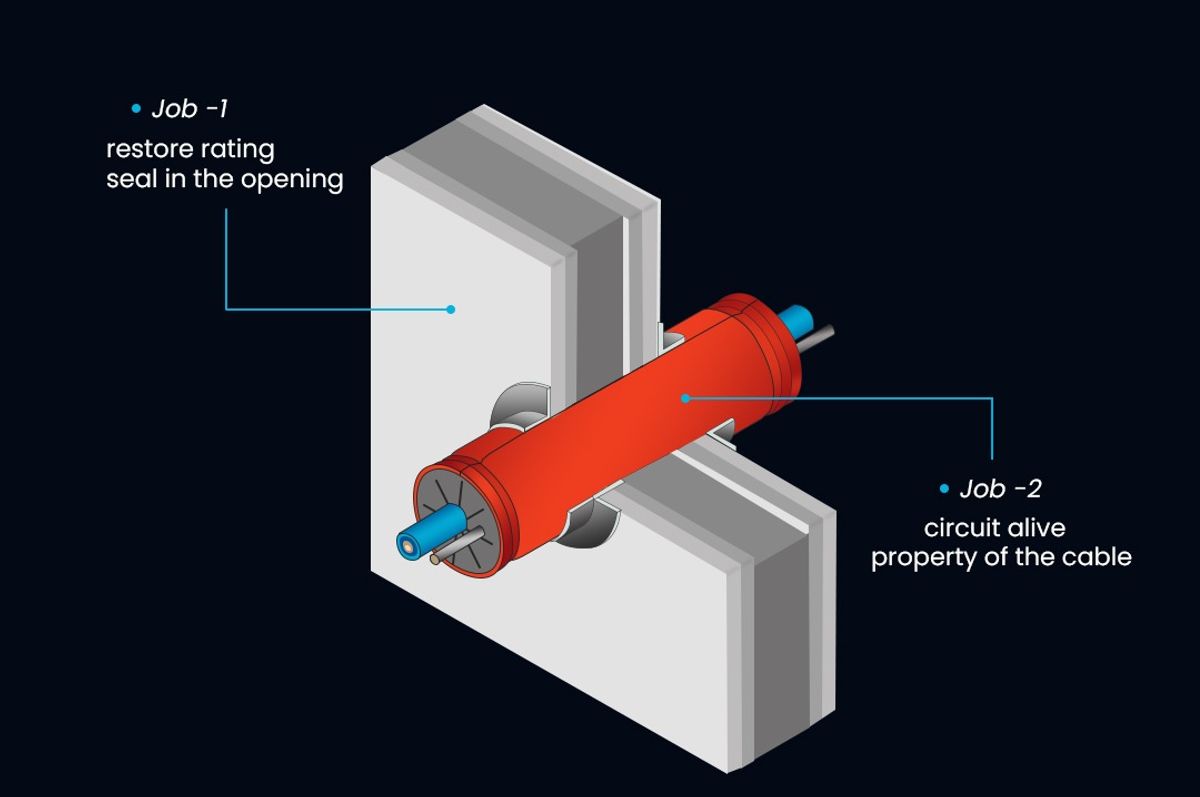

One penetration, both jobs at once

Here is where it all comes together, and why the confusion is understandable. A single fire-survival cable feeding a smoke-extract fan can pass through a two-hour rated floor. At that one spot you may have:

  • Job 2: the cable is a fire-resistant type, so the fan keeps running.
  • Job 1: the opening is sealed with a coated batt system, so the floor keeps its two-hour rating.

Two products, two reasons, one location. Neither replaces the other. The seal will not keep the fan running, and the fire-survival cable will not stop fire crossing the floor. Once you see them as separate jobs that happen to share an address, the whole subject stops being confusing.

The standards behind the products

Specifiers and approving authorities will expect performance backed by testing, not by product names. The categories above are consistent across frameworks, but the test references differ.

Under the European and British system, penetration seals are tested to EN 1366-3 and linear joint seals (gaps between building elements, distinct from service penetrations) to EN 1366-4, both in their current 2021 editions, with results classified to EN 13501-2 as an EI or E rating for a stated period. Older British work references BS 476 Part 20 and Part 22. When you accept a product, check the test standard and edition on the certificate; testing to a withdrawn edition should not support a current performance claim.

In India, passive fire protection sits within the National Building Code 2016, Part 4 (Fire and Life Safety), published by the Bureau of Indian Standards and adopted into most state building bye-laws. This framework has been revised as the National Building Construction Standards, SP 7:2026 (NBCS 2026), and specifiers should be reading against the version their jurisdiction has adopted. NBC and its successor set the compartmentation and fire-resistance requirements; the products used to maintain those ratings at penetrations should carry test evidence, ideally under the relevant EN/BS methods and, where applicable, BIS certification.

The practical point for anyone specifying or approving work: a firestop is only as good as its tested system. A collar, batt or sealant is certified for a specific wall or floor construction, a specific service type and size, and a specific configuration. Change any of those and the test evidence may no longer apply. "We have used this collar before" is not evidence for a different pipe in a different wall.

Common mistakes worth avoiding

Plain sealant around a plastic pipe is the classic one, and it leaves an open bore the moment the pipe softens. Overfilling or underfilling a batt opening so the coated depth no longer matches the tested system is another. Treating a plain cast-in sleeve as if it were a firestop, and doing nothing further, is a third. And confusing a fire-survival cable for a firestop, so a penetration gets left unsealed because "the cable is already fire rated," is the mistake that ties both jobs together in the worst way.

None of these are exotic. They come from the same root: not separating the two jobs, and not matching the product to a tested system for the exact situation in front of you.

Getting it right on your project

Service penetration firestopping is not complicated once the logic is clear: work out what is passing through, ask what it does in heat, then seal to a tested system for that exact case, and separately decide whether the service itself needs to survive or be coated along its run.
